Announcing ASUS ExpertCenter PB64
Mini PC designed for businesses, hospitals and retail spaces features a desktop CPU, an array of I/O ports and is available in black or white
- Compact 1.35-liter mini PC powered by up to Intel® Core™ Ultra processors (Series 2) features Intel Graphics and supports 35- to 65-watt CPUs
- Delivers up to 1.29X improvement in multithreaded performance over previous-generation CPUs
- Features triple storage support including two PCI® Gen 4 SSDs and also supports up to DDR5 6400MHz memory for fast data transfers
- Supports up to four displays and offers eight USB ports plus an additional configurable port
TAIPEI, Taiwan, September 17, 2025 — ASUS today announced ExpertCenter PB64, a 1.35-liter mini PC powered by up to an Intel® Core™ Ultra 7 desktop processor (Series 2) and featuring Intel Graphics. Ready for 35- to 65-watt CPUs, this versatile mini PC supports up to three storage drives, including two PCIe® Gen 4 SSDs, and DDR5-6400MHz memory ensures tasks are seamlessly and efficiently executed. ExpertCenter PB64 supports up to four displays via two DisplayPort™ connections, USB4® Type-C®, and a configurable port (DisplayPort™, HDMI®, or VGA). The chassis is available in black or white and includes a stackable optical drive module.
Desktop-grade performance
The ExpertCenter PB64 mini PC is powered by the latest Intel Core Ultra processors (Series 2) with Intel Graphics, enabling it to easily handle a myriad of business tasks. These processors are able to deliver up to 1.29X improvement in multithreaded performance over previous-generation CPUs. In addition, ExpertCenter PB64 is able to support 35W to 65W CPUs, making it a flexible solution.
Compact power, easy upgrades

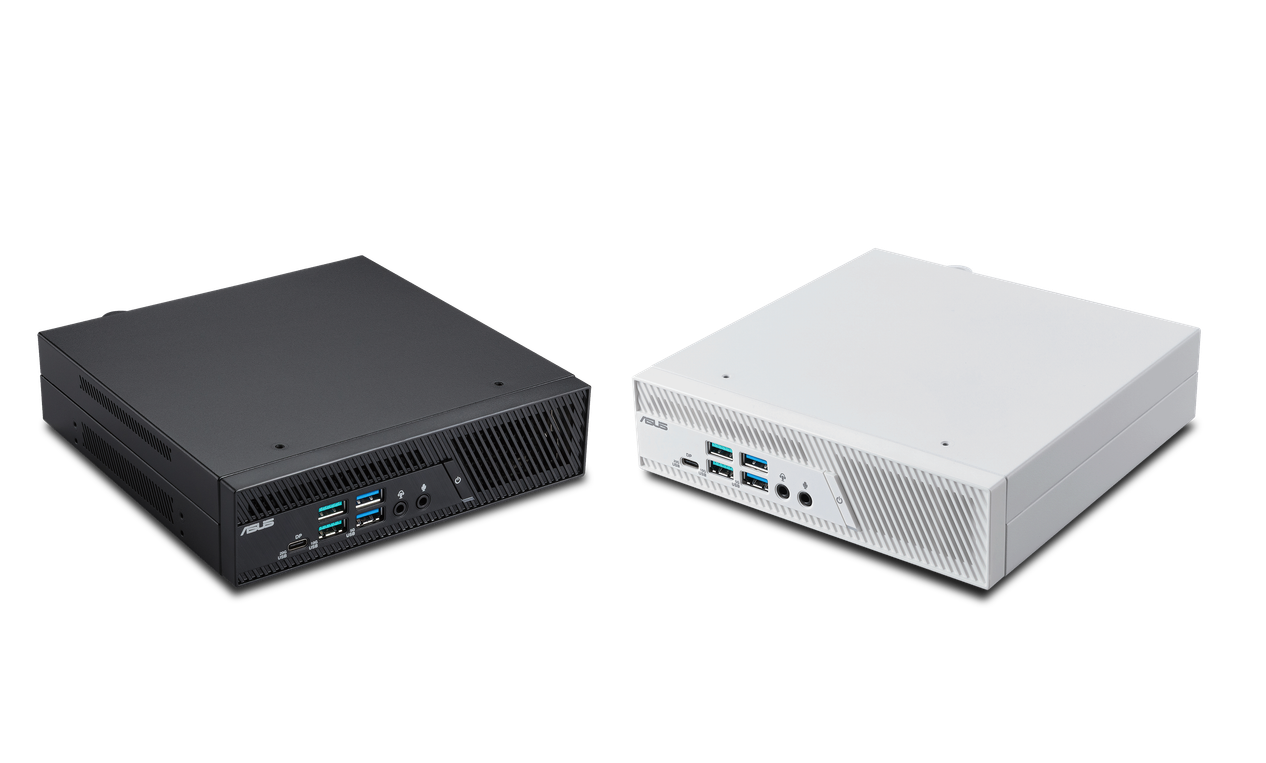

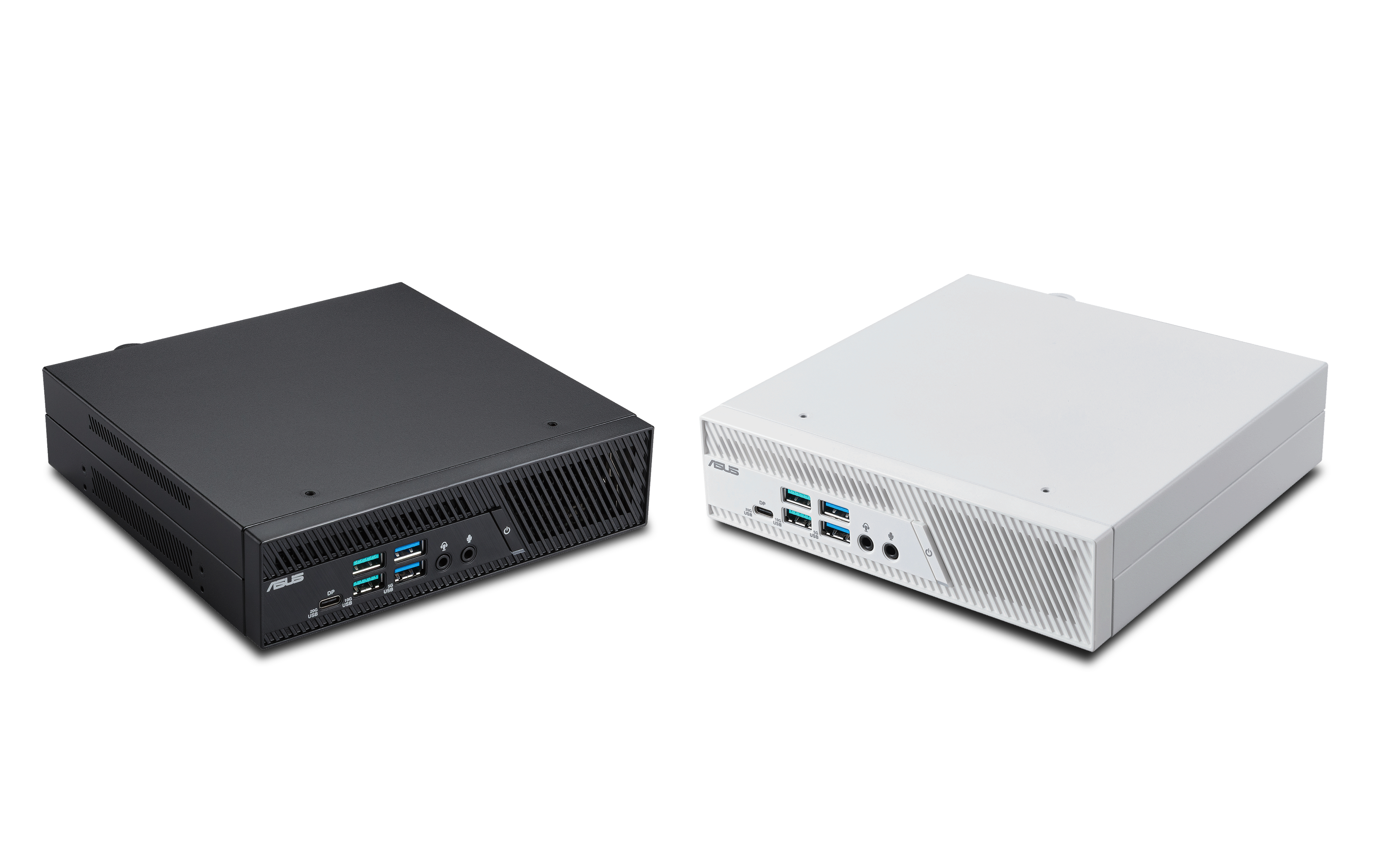

Measuring 175 x 175 x 44.2mm, the ExpertCenter PB64 mini PC is available in classic black and sleek white finishes, and is suited for diverse environments including offices, hospitals, and retail spaces. The compact dimensions also allow it to fit into tight spaces or setups for digital signage or kiosks. A bundled stand and VESA-compatibility give users flexible mounting options. In addition, the toolless chassis design provides easy access for memory or SSD upgrades.
Extensive connectivity for maximum flexibility
The ExpertCenter PB64 mini PC features eight high-speed USB ports — the most in its class — including USB Type-C® 3.2 Gen 1, USB Type-A Gen 1, and USB 2.0 connectivity on its front and rear panels. It also features a configurable HDMI®, VGA, COM, DisplayPort™, or LAN port to support modern and legacy devices. In addition, Intel UHD Graphics ensure stunning 4K UHD visuals across four displays via the aforementioned ports. This versatility makes the ExpertCenter PB64 mini PC well-suited for industrial and commercial applications as well.
Superfast wireless performance
ExpertCenter PB64 offers Intel WiFi 7 and Bluetooth® 5.4 for fast, reliable wireless connectivity. WiFi 7 supports up to 16 devices for smooth online meetings and quick file transfers. Bluetooth 5.4 ensures stable peripheral connections with extended range, boosting multitasking and productivity.
Device security features
A Kensington lock slot deters physical theft and an intrusion alert notifies administrators if the chassis has been accessed since last boot up, ensuring both device and data are safe and secure.
Built for 24/7 reliability and durability
ASUS mini PCs are engineered to perform under the toughest conditions. Tested to meet stringent US MIL-STD-810H reliability standards, they withstand extreme temperatures, altitude, humidity, as well as repeated drop and vibration tests, ensuring consistent performance even in demanding environments. Designed for round-the-clock operation, ASUS mini PCs come with integrated IT management tools that help reduce maintenance costs and improve operational efficiency, delivering reliable, long-term solutions for businesses.
ASUS Corporate Stable Model program
The ASUS Corporate Stable Model (CSM) program is designed to support organizations with the latest technologies, services and management software. ASUS CSM products come with a stable roadmap and guaranteed 36-month supply availability and an EOL notice, ensuring customers do not need to worry about material-supply gaps or extended supply. Customers who purchase ASUS CSM products will receive the CSM edition of ASUS Control Center, valued at US$60.
ASUS Control Center is a new centralized IT management software application that provides top-notch IT-management experiences and high visibility across ASUS enterprise and commercial products. This software is designed to enable effective monitoring and control of servers, workstations, laptops, desktops, all-in-one (AiO) computers, thin clients, and digital signage.
Specifications
ASUS ExpertCenter PB64
|
Operating System |
Windows®11 Pro 64-bit |
|||
|
Windows®11 64-bit |
||||
|
w/o OS |
||||
|
CPU* |
Intel® Core™ Ultra 7 processor 265: P-core: 8C, up to 5.20GHz / E-core: 12C, up to 4.60GHz |
65W |
||
|
Intel® Core™ Ultra 5 processor 245: P-core: 6C, up to 5.10GHz / E-core: 8C, up to 4.50GHz |
65W |
|||
|
Intel® Core™ Ultra 5 processor 235: P-core: 6C, up to 5.00GHz / E-core: 8C, up to 4.40GHz |
65W |
|||
|
Intel® Core™ Ultra 5 processor 225: P-core: 6C, up to 4.90GHz / E-core: 4C, up to 4.40GHz |
65W |
|||
|
|
|
|||
|
*T-series CPUs are available by request |
|
|||
|
Chipset |
Intel® B860 Chipset |
|||
|
Graphics |
Integrated - Intel® Graphics |
|||
|
Memory |
2x SO-DIMM/CSO-DIMM, DDR5-5600/6400* MHz memory, up to 2x 32GB |
|||
|
*6400MHz only supported on CSO-DIMM |
||||
|
Storage |
2x M.2 2280 PCIe® Gen4x4, supports 128GB–2TB NVMe™ SSD |
|||
|
1x 2.5" SATA 6Gb/s, supports 1TB 7200rpm 7mm HDD* |
||||
|
* Supports 1TB 7200rpm 7mm HDD but not included as a standard configuration. |
|
|||
|
Wireless Network |
Intel® AX211 (Gig+), WiFi 6E, Bluetooth® 5.3, 2*2 |
|||
|
Intel® BE202 (Gig+), WiFi 7, Bluetooth 5.4, 2*2 |
||||
|
|
||||
|
* Bluetooth version support may vary from OS. |
||||
|
LAN |
1 x Intel® I226V, 2.5Gb LAN |
|||
|
1 x Intel® I225V, 2.5Gb LAN (Config. Port) |
||||
|
|
||||
|
Optical Drive |
Supported |
|||
|
Integrated Speaker |
Optional |
|||
|
Audio |
ALC3251-CG |
|||
|
Card Reader |
N/A |
|||
|
TPM |
fTPM 2.0 or TPM 2.0 chip (Optional) |
|||
|
Interfaces |
Front I/O Side I/O Rear I/O |
1 x |
USB 4 Type-C® |
|
|
2 x |
USB 3.2 Gen2 Type-A |
|||
|
2 x |
USB 3.2 Gen1 Type-A |
|||
|
1 x |
Mic in |
|||
|
1 x |
Audio Jack (Line out/Mic in/Headphone out) |
|||
|
Side I/O |
|
N/A |
||
|
|
||||
|
Rear I/O
|
1 x |
USB 3.2 Gen2 Type-A |
||
|
1 x |
USB 3.2 Gen2 Type-C® (PD-IN 100W) |
|||
|
1 x |
USB 2.0 |
|||
|
2 x |
DisplayPort™ 1.4 |
|||
|
1 x |
Configurable (options: HDMI® 2.1*/ DisplayPort 1.4 / COM / VGA / 2.5G LAN) |
|||
|
1 x |
2.5G RJ45 LAN |
|||
|
1 x |
Kensington Lock slot |
|||
|
1 x |
DC-in |
|||
|
1 x |
Padlock ring |
|||
|
* Supports up to 4 displays simultaneously |
||||
|
Physical |
Dimensions |
175 x 175 x 44.2mm |
||
|
Weight |
1.2kg |
|||
|
Power Supply |
90W/120W |
|||
|
Accessories |
WiFi Antenna |
Yes |
||
|
User Manual |
Yes |
|||
|
Warranty Card |
Yes |
|||
|
AC Adapter |
Yes |
|||
|
Power Cord |
Optional |
|||
|
VESA Mount / Stand |
Optional |
|||
|
Keyboard + Mouse |
Yes |
|||
|
Power Supply* |
All PB series has passed the DOE VI regulation (over 150W: DOE efficiency 89% 65W/120W: DOE efficiency 88%) |
|||
|
Temperature and 24/7 Testing Standard |
Operation: temperature 0–50° C Non-Operation: temperature -40–85° C Humidity: 0–95% Endurance test: 168 hours (24 hours x 7 days) Operation under 35° C/ 80% humidity |
|||
